Products Description
I. Core Advantages of Precision Etching Process for Metal Bipolar Plates
Precision photochemical etching has become the mainstream forming process for mass production of metal bipolar plates. Different from traditional processing methods such as stamping, CNC milling and laser engraving, it adopts stress-free cold chemical subtractive forming as its fundamental principle. It perfectly suits micro-channel machining of ultra-thin stainless steel and titanium alloy substrates with thickness ranging from 0.08mm to 0.3mm. It delivers irreplaceable comprehensive strengths across the whole industrial chain, including R&D sampling, small-batch trial production and mass manufacturing at million-piece scale, which directly determines stack power density, service life and overall manufacturing costs.
1. Zero Stress & Zero Deformation for Stable Forming of Ultra-Thin Sheets
The entire etching process is a normal-temperature chemical cold reaction, free of extrusion and tensile force from mechanical stamping, as well as heat-affected zones (HAZ) caused by high temperature in laser processing. No lattice plastic deformation or residual internal stress generates inside metal sheets. The mainstream substrate thickness for bipolar plates in the industry is merely 0.1–0.3mm. Stamped plates are prone to warpage and arching after demolding; uneven fitting gaps form between plates and gas diffusion layers (GDL) during stack assembly, pushing contact resistance up by over 50%. Laser engraving leads to local thermal expansion and contraction deformation on thin sheets, resulting in excessive flatness tolerance.
Precision etching controls overall flatness within ≤0.01mm. The total deformation of 0.08mm ultra-thin titanium foil after synchronous double-sided etching is less than 0.005mm. Tolerance accumulation is controllable when assembling stacks of 300–500 plates, with uniform stress applied to every single plate. Ohmic loss is reduced fundamentally, and the stability of stack output power improves by 18%–25%. Stress-free plates greatly boost the yield rate of subsequent laser welding; weld seams for sealing anode and cathode plates have no cracking or leakage risks, with stable air tightness pass rate of stacks exceeding 99.7%.
2. Micron-Level Ultra-High Dimensional Accuracy & Excellent Consistency of Micro-Channels
Dimensional tolerance of etching stably reaches ±0.01–±0.025mm, with the highest precision of critical channel width and depth controlled at ±5μm. It is the only process capable of stable mass production of 0.1mm ultra-fine channels and dense micro-hole arrays. With zoned spray gradient etching and synchronous double-sided corrosion technology, channel side walls feature high verticality and uniform groove depth. The width error of thousands of micro-channels on a single plate is no more than 3 microns. By contrast, stamped channels generally have a tolerance of ±0.08mm with inclined and rough side walls, leading to volatile pressure drop along gas flow paths.
Flow field structures optimized via CFD simulation, including serpentine, interdigitated, parallel and composite layouts, can be reproduced completely without damage. Up to 1200 micro-channel networks can be formed per square centimeter. The uniformity of hydrogen and air diffusion exceeds 98%, greatly synchronizing electrochemical reactions, cutting water retention by 65%, and effectively mitigating failure issues such as channel flooding and local overheating. Inlet/outlet ports, positioning benchmarks and sealing grooves are integrally formed via synchronous etching, delivering unified assembly benchmarks for multi-station production and full compatibility with automated stacking lines.
3. Burr-Free Smooth Surface to Enhance Coating Adhesion & Sealing Performance
Stamping and CNC machining inevitably produce metal burrs, flanging and tool marks; laser cutting leaves molten slag and oxidized carbon deposits. Deburring adds extra process costs, and tiny burrs may puncture proton exchange membranes or scratch sealing strips, causing stack air leakage and membrane scrappage. Etching removes metal evenly through chemical liquid corrosion, generating smooth, burr-free edges without sharp corners. Surface roughness Ra can be adjusted to form a uniform matte base free of machining scratches.
The clean and flat surface provides an ideal substrate for PVD magnetron sputtering anti-corrosion conductive coatings. Bonding force of carbon-based, CrN and platinum-based composite coatings rises by 40% without peeling or pinhole defects. Sealing glue fits seamlessly, doubling sealing durability under long-term cold-heat cycling. No leakage occurs after 30,000 hours of aging tests.
4. No Hard Mold Investment, Fast Design Iteration & Low R&D Cost
A complete set of flow channel stamping molds costs tens of thousands to over one hundred thousand currency units. Any drawing fine-tuning, flow field optimization or model modification requires remanufacturing molds, extending R&D cycles by 30–60 days. Etching replaces rigid steel molds with digital photomasks; photomask production cost is less than 1/50 of steel molds. Drawing revisions only require regenerating film negatives, with sampling finished within 24–48 hours.
The etching process flexibly covers full capacity ranges from lab prototype small batches of 1–10 pieces to mass production of millions for commercial vehicles, with no minimum order threshold. Multiple plate models can be arranged and etched in one batch, and model switching time is shortened to within 2 hours. It supports simultaneous R&D iteration of multiple power stacks for vehicle manufacturers, slashing overall R&D investment by over 60% and greatly accelerating new product launch schedules.
5. Full Compatibility with Multiple Metal Materials for Diversified Substrate Solutions
Etching stably processes mainstream hydrogen energy metals including 316L/304 stainless steel, TA1/TA2 titanium alloy, cupronickel and Invar. Custom etching liquid systems are formulated for different metals: ferric chloride gradient corrosive liquid for stainless steel, low-temperature plasma-assisted etching systems for titanium alloy, and corrosion inhibitor formulas for ultra-thin copper foil, without damaging native conductive and anti-corrosion properties of substrates.
It perfectly adapts to the two dominant industrial routes: stainless steel bipolar plates serve commercial buses, logistics vehicles and stationary energy storage stacks with prominent cost advantages; titanium alloy plates target heavy trucks, aviation and marine scenarios requiring high durability. Etching enables lightweight forming of 0.08mm titanium foil, reducing single plate weight by 57% versus stainless steel and cutting total stack weight by 40% to expand load and cruising space for vehicles. Graphite plates cannot be etched; etched metal plates are over 70% thinner than graphite counterparts, easily pushing stack volumetric power density above 5.2kW/L.
6. High Mass Production Yield & Controllable Unit Manufacturing Cost
The standardized closed-loop etching workflow includes cutting, degreasing pretreatment, dry film coating and baking, UV exposure & development, precision double-sided etching, stripping & passivation, purified cleaning and full dimensional inspection. Automated assembly lines operate in Class 10,000 constant-temperature clean workshops with minimal manual intervention, achieving a stable mass production yield above 98.5%. Stamping yield declines year by year due to mold wear in large-volume production; single-piece laser processing takes 3–5 times longer than etching, with higher electricity and equipment depreciation costs.
Mass orders dilute costs of photomasks and chemical liquid consumption, bringing per-piece etching processing cost below stamping for million-level batches. Extra post-processing steps such as mold repair and deburring are eliminated, cutting overall processing fees by 15%–22%. Stress-free forming reduces rework from welding and membrane electrode waste, significantly lowering hidden scrappage costs. This helps bipolar plates, which account for 30%–40% of total stack cost, continuously drive down expenses and speed up commercial parity of hydrogen energy.
Tags: hydrogen fuel cell bipolar plate metal bipolar plate etching PEM stack bipolar plate precision etched bipolar plate stainless steel bipolar plate titanium alloy bipolar plate
Technical parameter

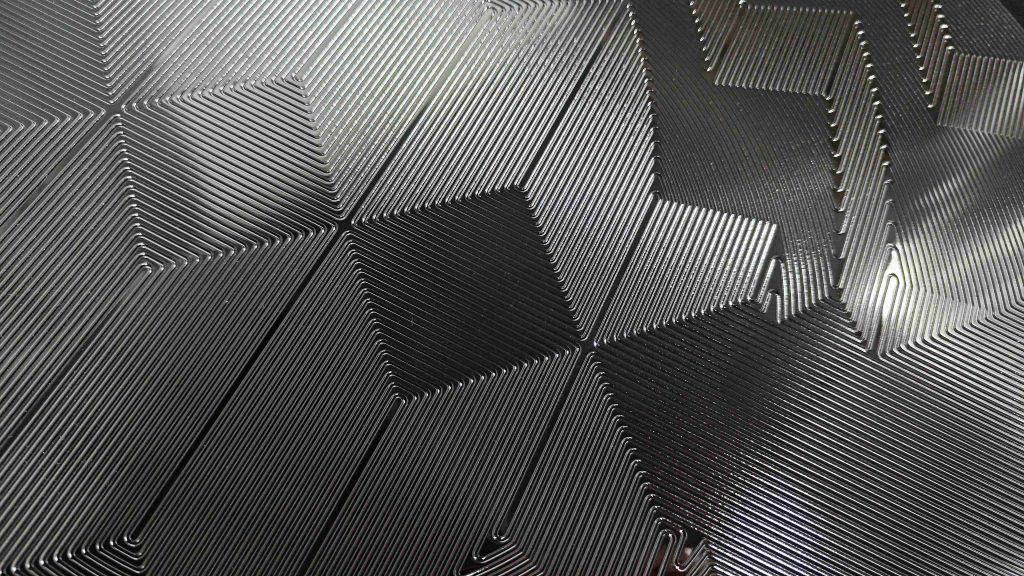

Hydrogen Energy Bipolar Plates

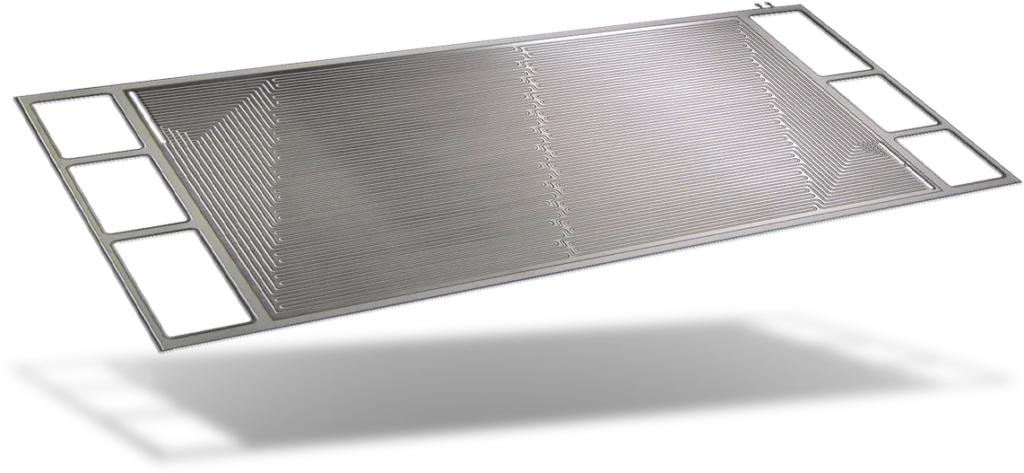

Hydrogen Energy Bipolar Plates
Hydrogen Energy Bipolar Plates
II. Product Characteristics of Precision Etched Metal Bipolar Plates
The etching forming process determines a complete set of physical, electrical, anti-corrosion and mechanical product attributes, distinguishing etched plates from alternatives with six standardized core strengths: ultra-thin lightweight structure, low resistance & high conductivity, superior corrosion resistance, excellent air tightness, high rigidity & long service life. All performance indicators can be precisely tuned via etching parameters to meet national standards and tier-1 supplier testing requirements for automakers.
1. Ultra-Thin Lightweight Structural Characteristic
Leveraging deformation-free subtractive etching, substrate thickness covers a gradient specification range of 0.08mm–0.3mm:
- 0.08–0.12mm titanium alloy plates: For high-end stacks in aviation, UAVs and heavy trucks, with single plate weight only 3–6g to boost both volumetric and gravimetric power density of stacks;
- 0.15–0.3mm stainless steel plates: Universal models for buses, logistics vehicles and backup energy storage power supplies, balancing cost and structural strength.
Compared with traditional graphite bipolar plates of 2–5mm thickness, etched metal plates reduce thickness by over 85%. Stacks of equal power shrink in volume by more than half, perfectly fitting narrow engine compartments of vehicles. Metal substrates possess far better ductility and toughness than brittle graphite, delivering strong resistance to vibration and impact without cracking or fracture under bumpy road conditions.
2. Low Contact Resistance & High Electrical/Thermal Conductivity
Native metal conductivity far outperforms graphite, and stress-free etching preserves complete lattice conductive paths inside metals. Volume resistivity of stainless steel substrates is ≤1×10⁻⁶Ω·cm, while coated titanium alloy plates achieve greatly enhanced conductive performance.
The combination of smooth flat etched contact surfaces and high-performance PVD coatings stabilizes interfacial contact resistance between plates and GDL at 2.3–5mΩ·cm², far below the industry admission threshold of 20mΩ·cm². Minimal current transmission loss ensures stable open-circuit voltage and peak output power of stacks. Meanwhile, metal thermal conductivity is 3–5 times that of graphite. Integrally etched cooling channels create unbroken heat conduction paths for uniform and rapid heat dissipation without local hotspots, widening the stack temperature operating window for stable startup at -30℃ and full-load operation at 85℃.
3. Strong Acid-Alkali Corrosion Resistance & Long-Term Operational Stability
The interior of PEM fuel cells features a strongly acidic humid environment with fluoride ions and high-potential oxidative corrosion. Bare uncoated stainless steel suffers rapid passivation corrosion, with corrosion contaminants polluting membrane electrodes and clogging channels. The etching process optimizes substrate surface crystal structure in advance: pulsed electrochemical etching limits native surface oxide film thickness within 3nm for gap-free coating adhesion.
With carbon-based, chromium nitride or precious metal composite coatings applied, corrosion current density drops to ≤1×10⁻⁷A/cm² with stable corrosion potential. Standard service life of stainless steel etched plates reaches ≥15,000 hours, while titanium alloy etched plates exceed 30,000 hours, far surpassing the 8,000-hour operational demand for domestic commercial vehicles and drastically cutting vehicle maintenance and replacement costs. Specially etched titanium bipolar plates for PEM water electrolysis under strong acid conditions withstand polarization corrosion for high-pressure high-current electrolyzer scenarios.
4. Superior Air Tightness & Zero-Leak Sealing Performance
Integrally etched sealing grooves and positioning bosses deliver unified dimensional accuracy for 100% perfect fitting of sealing strips. Stress-free flat plates bear even pressure during stacking without local gaps. Laser-sealed anode and cathode plates form cooling cavities with smooth welds free of incomplete fusion or pinholes. Helium leak detection confirms air tightness leakage rate ≤1×10⁻⁹Pa·m³/s, completely blocking cross-leakage risks between hydrogen, air and coolant. Pressure holding tests on single cells and full stacks show minimal pressure drop, eliminating hydrogen leakage safety hazards and meeting vehicle explosion-proof specifications.
5. High Mechanical Rigidity & Anti-Fatigue Mechanical Performance
Etching only removes partial material for channel forming, retaining full native mechanical properties of base substrates. Bending strength of stainless steel reaches ≥220MPa, and titanium alloy ≥350MPa. Plates withstand standard stack assembly pressure of 1–3MPa without plastic collapse or thinning under long-term compression. No structural cracking or channel deformation occurs after millions of kilometers of vehicle vibration fatigue testing; dimensional fluctuation stays below 0.01mm after thousands of cold-heat cycles from -40℃ to 90℃, ensuring stable structural dimensions throughout the full service life. Unlike brittle graphite plates, metal etched plates resist breakage from drops or impacts, with extremely low loss during storage and transportation.
6. Highly Customizable Structure & Wide Compatibility
Etching imposes no limits on graphic complexity. Arbitrary flow field layouts (serpentine, interdigitated, parallel, porous diffusion), special-shaped inlet/outlet ports, multi-group cooling loops, positioning holes, engraved logos and assembly bosses can all be formed in one etching pass without secondary machining. Custom single-sided etching and differential-depth double-sided etching (shallow gas-side grooves, deep cooling-side grooves) match differentiated designs for anode and cathode plates. It is fully compatible with all mainstream stack assembly processes including automated laser welding, rubber ring sealing, bolt fastening and integrated MEA pressing, covering hydrogen energy equipment for passenger cars, heavy trucks, forklifts, ships, aviation, stationary power generation and PEM water electrolysis.
7. Ultra-Clean Surface for High-Purity Hydrogen Operation
The full etching workflow adopts closed-loop purified control of chemical liquids. Multiple ultrasonic purified water cleaning and vacuum drying steps eliminate oil stains, metal debris and residual etching liquid, achieving electronic-grade surface cleanliness with zero heavy metal ion precipitation that would contaminate proton exchange membranes and catalysts. Unlike stamped plates with residual machine oil or laser-processed plates with oxidized dust pollution, etched plates suit strict operational requirements for high-purity hydrogen (≥99.97%), slowing catalyst degradation by 30% and extending service life of core MEA components.
III. Four Core Product Functions of Precision Etched Metal Bipolar Plates
As the core skeleton carrier of PEM fuel cells and PEM water electrolysis stacks, etched metal bipolar plates connect hundreds of single cells to form a complete stack assembly. They integrate four irreplaceable core functions: gas distribution & flow guiding, current collection & conduction, heat dissipation & temperature control, structural support & airtight sealing. Reliable performance of every function relies fundamentally on high-precision micro-channels and flat substrates produced by etching.
1. Uniform Reaction Gas Distribution & Water Vapor Drainage (Fluid Conveying Core)
Independent flow fields are etched on front and back sides of each plate: anode channels deliver pressurized hydrogen, cathode channels supply air/oxygen, and interlayer etched cooling channels circulate antifreeze coolant. Equal-depth equal-width precision etched channels ensure consistent gas flow velocity and pressure from inlet to outlet across the entire active reaction zone, enabling synchronized catalyst participation in electrochemical reactions and eliminating local over-reaction or under-reaction.
Precisely etched channel ridge-groove ratios, tilt angles and drainage slopes accelerate discharge of liquid water generated by reactions via gravity and airflow to suppress channel flooding. Excess nitrogen and waste gas from the cathode are guided out synchronously to balance internal stack pressure. For water electrolysis applications, uniform etched channels feed pure water and electrolyte, quickly separating hydrogen and oxygen products to avoid gas-liquid mixing and reduced electrolysis efficiency.
2. Low-Loss Current Collection & Electrical Conduction (Power Transmission Core)
Bipolar plates connect adjacent membrane electrodes in series: electrons from the anode of one single cell transmit through the metal plate to the cathode of the next cell, cascading current to amplify stack output power. Stress-free intact metal substrates form continuous conductive paths without resistance breakpoints caused by stamping deformation. Flat surfaces achieve large-area tight contact with GDLs to minimize interfacial power loss.
Controllable overall ohmic loss across hundreds of series plates stabilizes stack energy conversion efficiency above 60%. No local overheating or voltage drop occurs under high-current full-load operation. Superior to graphite plates in conductivity, etched metal plates excel in high-power heavy trucks and large stationary power stacks with doubled peak current carrying capacity.
3. Efficient Uniform Heat Dissipation & Thermal Management (Temperature Control Core)
Integral etched interlayer cooling cavities act as the sole heat dissipation channel for stacks. Circulating coolant rapidly removes massive heat released by electrochemical reactions to maintain stacks at the optimal reaction temperature of around 80℃. Fully simulation-optimized etched cooling channels deliver uniform coolant flow and maximized heat exchange area, limiting full-stack temperature difference to ≤3℃ with no local hotspots.
In low-temperature environments, preheated hot water can circulate through coolant channels; high metal thermal conductivity rapidly raises stack temperature for reliable cold startup at -30℃. Under high-temperature full-load conditions, heat is extracted instantly to prevent membrane shrinkage and catalyst sintering failure. Etched metal plates feature far faster thermal response than graphite, enabling more sensitive regulation of vehicle thermal management systems with lower auxiliary energy consumption.
4. Structural Support, Medium Isolation & Airtight Sealing (Stack Skeleton Core)
Hundreds of alternating etched bipolar plates sandwich membrane electrodes and sealing gaskets to form the physical support framework of the entire stack, bearing bolt tightening pressure, vehicle vibration loads and internal fluid pressure. High-rigidity etched base plates remain undeformed to evenly distribute assembly pressure and protect fragile proton exchange membranes from extrusion puncture. Plates physically isolate three fluid loops (hydrogen chamber, air chamber, cooling chamber) to eliminate direct mixing of media and mitigate explosion risks from hydrogen-air mixture.
Standardized etched sealing mounting positions form long-term airtight barriers matched with fluororubber and silicone sealing parts. Precision etched edge positioning holes enable accurate alignment by automated stacking equipment for high consistency of full-stack assembly. For high-pressure water electrolysis, thickened border etched plates withstand internal air pressure of 1–3MPa without structural deformation to guarantee safe high-pressure hydrogen production.
Industry Conclusion
Amid accelerated industrialization of hydrogen energy in 2026, precision etching has matured into the dominant manufacturing route for metal bipolar plates, balancing four core demands: precision, yield, cost and lightweight design. With stable product characteristics and full delivery of four critical stack functions, etched metal bipolar plates comprehensively replace traditional stamping and graphite solutions. As key core components that lower costs, boost power density and extend service life for vehicle fuel cells and water electrolysis hydrogen production equipment, they possess strong long-term market growth certainty.
