I. Processing Advantages of Precision Etched Coffee Filters
Precision chemical etching has become the mainstream manufacturing process for high-end metal coffee filters. Different from traditional weaving, stamping, and laser drilling, it adopts normal-temperature stress-free chemical subtractive forming technology. It can mass-produce uniform micron-level micro-hole arrays on 0.05mm–0.3mm food-grade stainless steel sheets, featuring high precision, high cleanliness, zero deformation, and flexible customization. It effectively solves the common defects of traditional filters, such as unstable extraction, easy dirt accumulation, structural deformation, and short service life.
1. Stress-Free & Deformation-Free with Higher Fitting Stability
The etching process belongs to cold chemical processing without mechanical extrusion or high-temperature thermal impact, leaving no residual stress on the metal substrate. Traditional woven filters are prone to sagging and uneven surfaces; stamped filters easily warp; laser drilling causes thermal deformation. These defects lead to poor fitting with filter cups, water leakage, and unstable flow rate. Etched filters maintain excellent flatness, never sag or deform after repeated hot water flushing and temperature cycling, ensuring stable extraction flow and consistent brewing results while improving the yield of edge rolling and welding processes.
2. Micron-Level Precise Aperture & Uniform Water Permeability
Etching achieves a precise aperture tolerance of ±0.01mm with highly unified hole size, spacing, and distribution, making it the only mass-producible solution for ultra-uniform micro-hole arrays. Woven filters have random hole sizes and irregular gaps; stamped holes form tapered bell mouths; laser holes feature rough inner walls and large dimensional deviations. Etched straight holes with smooth vertical walls deliver consistent water resistance. Custom aperture and density layouts can be tailored for light roast, dark roast, fine grinding, and coarse grinding, fundamentally solving under-extraction and over-extraction problems.
3. Burr-Free & Dead-Corner-Free, Food-Grade Clean & Easy to Clean
Etched holes feature smooth, rounded edges without burrs or hidden corners, preventing coffee fine powder and grease adhesion. Traditional woven filters easily accumulate dirt and mold in staggered gaps; stamped and laser-drilled filters have sharp burrs that scratch coffee utensils and residue coffee grounds. Etched filters have passivated smooth surfaces that allow quick cleaning with plain water. They fully comply with FDA and LFGB food contact standards for safer and longer-term use.
4. No Hard Mold Required, Fast Iteration & Low Customization Cost
Traditional stamping and weaving require expensive mold opening and machine adjustment for style changes, resulting in long and costly sampling cycles. Etching uses photomasks instead of steel molds, enabling design modification and 24–48 hour fast sampling. It seamlessly supports small-batch customization and mass production. Special-shaped outlines, gradient density holes, diversion holes, and laser-etched logos can be integrally formed in one process, greatly reducing brand R&D costs and product launch cycles.
5. Food-Grade Material Compatibility with Superior Corrosion Resistance & Longer Service Life
The process stably processes 304 and 316L food-grade stainless steel without damaging the original substrate performance. 316L etched filters resist weak coffee acid and high-temperature steam corrosion, perfectly adapting to high-frequency commercial brewing scenarios with far better anti-aging performance than ordinary woven filters. All materials are traceable with no harmful precipitation, meeting full export food-grade testing requirements.
6. High Mass Production Yield & Lower Comprehensive Cost
Automated standardized etching production lines achieve a stable yield of over 98.8%, eliminating deformation scrap and secondary polishing procedures. For mass orders, the unit processing cost is lower than stamping and laser drilling, delivering stable quality, low after-sales failure rates, and optimal solutions for large-scale production of coffee appliance brands.
Tags: etched coffee filter food-grade metal filter pour-over coffee filter sheet precision chemical etching filter stainless steel micro-hole coffee filter
Technical parameter

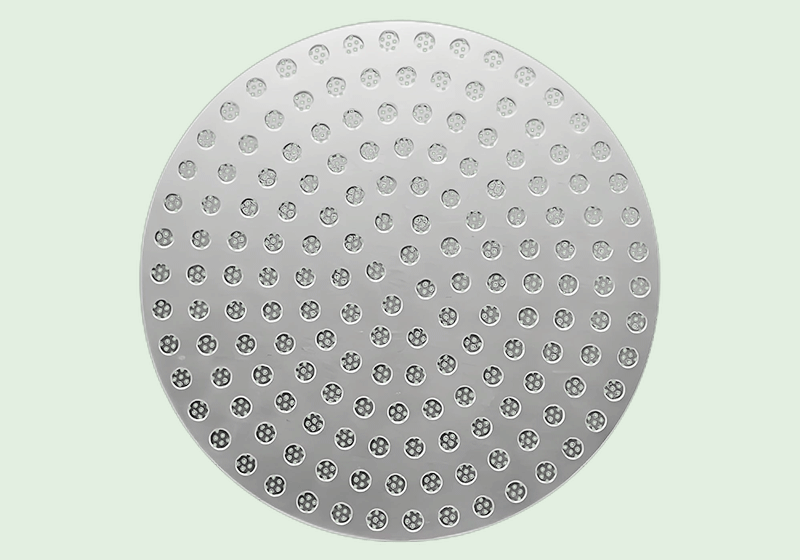

Metal Coffee filter Mesh
The etching process endows coffee filters with six exclusive core characteristics superior to traditional products, balancing appearance, food safety, performance, durability, and customization to meet high-standard demands for household, commercial, and cross-border markets.
1. Ultra-Thin, Flat & Perfect Fitting
Available in graded thicknesses from 0.05mm to 0.3mm. The integrated flat sheet fits closely with pour-over cups, espresso portafilters, and cold brew pots without suspended gaps or side leakage, stabilizing the overall extraction environment while maintaining metal rigidity and impact resistance.
2. Uniform Aperture & High Extraction Fault Tolerance
Customizable uniform holes and gradient density holes deliver consistent water permeability across the entire filter surface, avoiding local fast drainage or water accumulation. It balances unstable water flow, uneven powder thickness, and irregular manual pouring, effectively reducing brewing failure rates and stabilizing coffee flavor with balanced sweetness, acidity, and reduced bitterness.
3. Food-Grade Clean, Oil-Resistant & Low Maintenance
Without structural dead corners, the passivated surface effectively resists grease and fine powder adhesion. Daily cleaning only requires simple water flushing without deep descaling. Reusable and paper-free, it eliminates pulp odor and bacterial growth risks, reducing long-term consumable costs and supporting eco-friendly use.
4. High Temperature & Weak Acid Resistance with Excellent Anti-Aging Performance
It withstands long-term brewing above 95℃ and frequent cold-hot cycles, resisting corrosion from weakly acidic coffee liquid without rusting, aperture expansion, or deformation. Compared with woven filters that loosen or break within 3 months, etched filters boast 3–5 times longer service life, ideal for high-frequency commercial scenarios.
5. High Structural Strength & Fine Powder Leakage Prevention
The integrated metal sheet features uniform structural strength without broken wire risks. It resists collapse and deformation under high-pressure water impact with fixed and stable micro-hole sizes. It accurately intercepts fine coffee powder, delivering clear and residue-free coffee liquid with pure taste and no gritty texture.
6. Full-Scenario High Customization
Supports round, petal-shaped, and irregular special-shaped outlines, as well as uniform holes, gradient density holes, diversion holes, and double-layer composite filtering structures. Custom engraved logos, positioning grooves, and scales are available. Fully compatible with pour-over, espresso, cold brew, American coffee machines, siphon pots, and commercial coffee equipment, supporting differentiated brand product development.
Core Product Functions of Precision Etched Coffee Filters
As a core functional component for specialty coffee extraction, precision etched coffee filters undertake three key functions:
uniform diversion and balanced extraction, graded filtration and taste purification, stable flow rate and controllable extraction.
1. Uniform Water Diversion to Balance Overall Extraction Flavor
The regular and uniform micro-hole array evenly disperses pouring water to fully and synchronously infiltrate the coffee powder layer, preventing local over-extraction and under-extraction. The gradient density structure adapts to central pouring habits for balanced flow velocity between the center and edges. For high-pressure espresso extraction, it evenly disperses hydraulic pressure to avoid piercing the coffee puck, ensuring rich crema and stable, balanced flavor.
2. Graded Impurity Interception to Improve Coffee Purity
Custom apertures matching different grinding sizes accurately intercept coarse and fine coffee powder to eliminate turbidity and grit. Double-layer composite etched filters achieve dual-stage coarse and fine filtration, completely replacing disposable filter papers. It removes pulp odor, fully restoring the original floral aroma, fruity acidity, and caramel sweetness of coffee beans while intercepting roasted shell residues and tiny impurities for purer coffee taste.
3. Stabilize Flow Rate to Precisely Control Extraction Concentration
Straight and smooth micro-holes maintain constant water resistance. The water permeability can be precisely adjusted via aperture design to suit slow extraction for light roast coffee and fast extraction for dark roast coffee. The fully fitted flat structure avoids suspended water accumulation with minimal extraction time error. It ensures highly consistent concentration and flavor in every brewing, realizing standardized and repeatable specialty coffee extraction effects.
Conclusion
With the upgrading of specialty coffee consumption, reusable, paper-free, and stable-performance metal etched filters are rapidly replacing traditional woven filters and disposable paper filters. Featuring high-precision micro-hole structure, food-grade safety, excellent durability, and flexible customization, etched coffee filters have become the preferred accessories for high-end coffee appliances. They cover household, commercial, and cross-border export scenarios with strong product competitiveness and broad market growth potential.
